fastparts | EVERT62C-50TE - Tveggja pósta bílalyfta, 4.2 T lyftigetu

EVERT62C-50TE - Tveggja pósta bílalyfta, 5.0 T lyftigetu - 710.000 kr. með VSK

Detailed description

KEY FEATURES

No bottom connection in the lift makes working under the lifted vehicle more convenient
Control located on one side (choice available)
With APS technology - no need to lift the vehicle to release the lift locks
Electromagnetically released lock
Aluminum motor construction preventing overheating
24V control system
24V limit switch
Manual release switch for emergency lowering
Door guard
Foot guard
Bus adapter

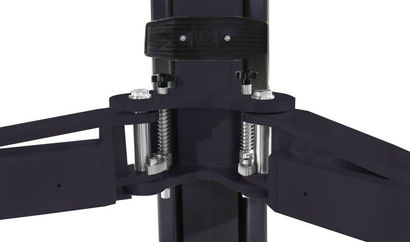

Solid three-stage arm structure
Undergoes 115% dynamic and 150% static load tests
CE certification from SGS Fimko Ltd.
NOTE: The customer must provide a forklift at their own expense during the installation of the lift

Product details

Market / application Commercial vehicles ; Professional ; Passenger cars
Name Two-post lift
Model 62C-50TE
Lifting capacity 5000.0 kg
Serviced vehicle delivery "M" ; delivery "L" ; passenger "XL" ; passenger 'M" ; passenger "S" ; delivery "S" ; passenger "L"
Drive electrohydraulic
Voltage 400.0 V
Intended use Maintenance
Minimum lifting height 100.0 mm
Maximum lifting height 1900.0 mm
Min. arm lenght 900.0 mm
Max. arm lenght 1800.0 mm
Front arms length 900.0 mm-1800.0 mm
Rear arms length 900.0 mm-1800.0 mm
Drive-through width (without lifting carriage) 3342.0 mm
Drive-through width (with lifting carriage) 3006.0 mm
Total width 4028.0 mm
Lifting time 35.0 sec.
Total height 4451 mm
Column height 4451.0 mm
Column width (top connection) 4315.0 mm
Concrete thickness 300.0 mm
Concrete class C20/25 (B25)
Column connection top
Automatic pawls Yes
Colour Dark grey
RAL colour 7021
Oil grade HLP 32
Qty of oil 10.0 l
Arm layout (2-column) symmetric
Weight 1,048.00 kg
