EVERT6435B 52 - Fjögurra pósta bílalyfta, 5.0 T lyftigetu - 1.430.000 kr. með VSK

Detailed description

  • Model 6435B 52L

  • 4-Post Diagnostic Electro-Hydraulic Lift

  • Lifting Capacity: 5000 kg

  • Lifting Height: 1850 mm

  • Minimum Height: 200 mm

  • Column Height: 2368 mm

  • Ramp Length: 5200 mm

  • Lifting Time: 55 s

  • Motor Power: 2.2 kW

  • Oil Pressure: 18 Mpa

  • Power Supply: 400 V / 3 PH

  • Weight: 1600 kg

​

​Tekur um 3-4 vikur fyrir þær að koma til landsins eftir að pöntun hefur verið lögð.

​KEY FEATURES

  • Electrohydraulic system

  • Single cylinder hidden under the ramps

  • Safety system in each column

  • Long and convenient ramps

  • Four-wheel safety locks for increased safety

  • Axle lift with a height of 450 mm

  • Lock release in one place

  • Aluminum motor construction to prevent overheating

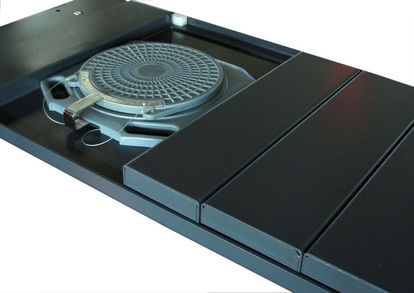

  • Included: ramps, axle jack, turntables and expansion plates

  • 24V control system and 24V limit switch

  • CE certification from SGS Fimko Ltd.

Screenshot 2025-12-31 at 00.26.03.png

Product details

  • Market / application    Commercial vehicles; Professional; Passenger cars

  • Name Four-post lift

  • Model 6435B 52

  • Lifting capacity 5000.0 kg

  • Serviced vehicle    delivery "M" ; delivery "L" ; passenger "XL" ; passenger 'M" ; passenger "S" ; delivery "S" ; passenger "L" ; delivery "XL"

  • Drive electrohydraulic

  • Mobility stationary

  • Voltage 400.0 V

  • Intended use Diagnostic

  • Minimum lifting height 180.0 mm

  • Maximum lifting height 1830.0 mm

  • Drive-through width (without lifting carriage) 2850.0 mm

  • Drive-through width (with lifting carriage) 2850.0 mm

  • Total width 3310.0 mm

  • Lifting time 55.0 sec.

  • Total height 2343 mm

  • Column height 2343.0 mm

  • Concrete thickness 350.0 mm

  • Concrete class C25/30 (B30)

  • Auxiliary hoist / lift Jacking beam

  • Platform length 5200.0 mm

  • Platform width 630.0 mm

  • Automatic pawls Yes

  • Place for turntables Yes

  • Turntables (included) Yes

  • Expansion plates Yes

  • Scissor lift in ramps No

  • Play detector in drive-ons No

  • Colour Dark grey

  • RAL colour 7021

  • Oil grade HLP 32

  • Qty of oil 12.0 l

  • Weight 1,820.00 kg
