S4DE40 - Skæralyfta, 3.5 T lyftigetu - 630.000 kr. með VSK
Detailed description
-
Platforms with additional access ramps / platform extensions.
-
Lift operating principle: Electro-hydraulic
-
Lifting capacity: 3500 kg
-
Lifting height: 1900 mm
-
Minimum platform height: 105 mm
-
Platform length: 1495 – 2110 mm
-
Platform width: 620 mm
-
Raising / lowering time: ~50 / ~60 sec.
-
Total length of the scissor lift: 2110 mm
-
Total width of the scissor lift: 2035 mm
-
Total weight: 950 kg
-
Power supply: 400 V / 50 Hz / 3 phases or 230 V / 50 Hz / 1 phase
-
Electr. motor power: 2.2 kW
-
Hydraulic oil capacity: 18 liters
-
Compressed air pressure used: 4 ~ 6 kg/cm2
-
Working temperature: 5°C - 40°C
-
Working humidity: 30 - 95%

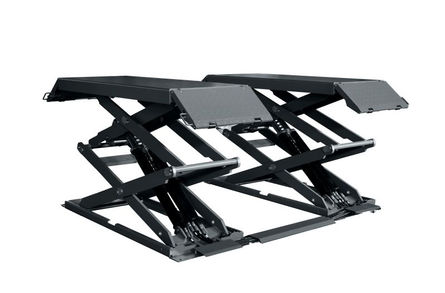

KEY FEATURES of FLOOR MOUNTED LIFT 3500 kg
This double scissor lift is designed for lifting various vehicles weighing up to 3500 kg. Using this lift, you will be able to perform various car repair work, from simple rim replacement to complex transmission and chassis repairs. Due to its easy installation, you will be able to use it in garages, workshops and car service stations.
Advantages:
-
A folding scissor mechanism is used, which significantly saves the space occupied by the lift.
-
Independent lift control unit. Low control voltage (24 V), which provides a high level of safety.
-
Hydraulic synchronization of the lift cylinders, which keeps the lifting platforms always level and ensures synchronized operation.
-
Double safety mechanism, which locks the platforms from falling.
-
Safety valves that protect against unexpected hydraulic system problems or excessive load.
-
The lift is equipped with a mechanical lowering of the lift in case of a power failure.
Product details
-
Market / application Professional
-
Name Scissor lifts / hoists
-
Support housing type on-floor
-
Lifting capacity 3500.0 kg
-
Serviced vehicle delivery "L"
-
Voltage 230.0 V/400.0 V
-
Minimum lifting height 105.0 mm
-
Maximum lifting height 1900.0 mm
-
Lifting time 55.0 sec.
-
Height 105.0 mm
-
Platform length 2110.0 mm
-
Place for turntables No
-
Turntables (included) No
-
Expansion plates No
-
Lift platform scissors No
-
Platform puller No
-
Drive electrohydraulic
